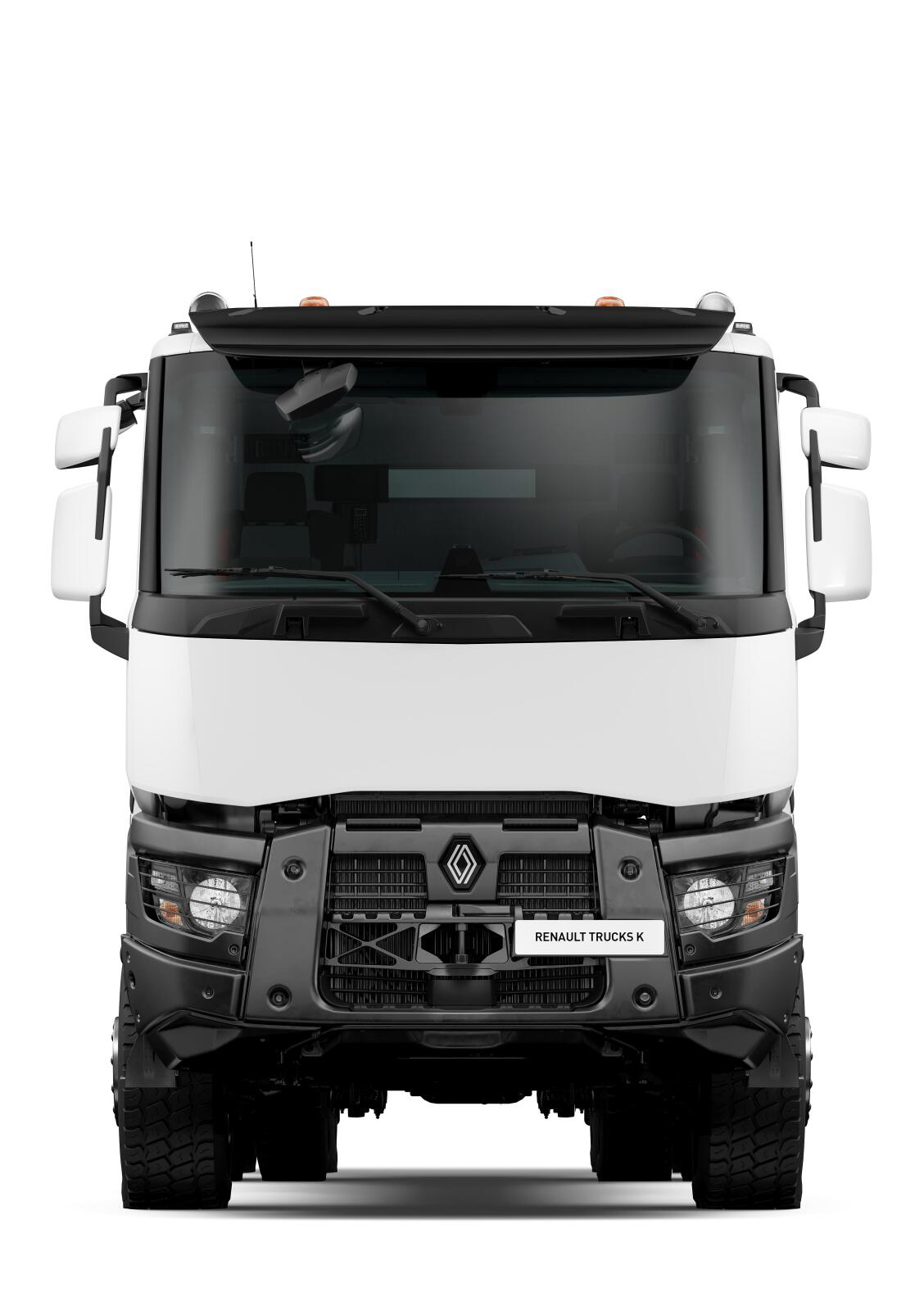

K RANGE 380→520HP

LONG HAUL / TRANSPORT / CONSTRUCTION – EURO 5
CAB 2,5M

ENGINES
DXI 11: 380 / 430 / 460 HP
DXI 13: 440 / 480 / 520 HP

CONFIGURATIONS
4×2, 4×4, 6×2, 6×4, 6×6, 8×4, 8×8 Rigid Chassis
4×2, 6×4, 6×6 Tractor Heads

GVW
21 – 52 T

GCW
40 – 120 T

CABS

DAY CAB : with Standard roof
NIGHT & DAY CAB : Sleeper cab with Standard roof
SLEEPER CAB : Sleeper cab with Raised roof
CREW CAB : XL cab (4 doors, 6- seater) and XXL Cab (4 doors, 8- seater) with Standard Roof

Robustness

STRONG ON ROBUSTNESS

RUGGED TRUCKS FOR DEMANDING ACTIVITIES

The new Renault Trucks construction offering has been designed using stringently tested, rugged components, units and solutions. Ruggedness which is also clearly apparent in the vehicle’s exterior design.

ALL-STEEL BUMPER
in three parts as standard to cut maintenance costs.
POLYCARBONATE HEADLIGHTS AND OPTIC PROTECTION GRIDS
fitted as standard providing greater impact resistance.
EXTENDED SIDE MEMBER REINFORCEMENT OFFERING
to ensure the frame’s mechanical resistance.
SEMI-ELLIPTIC OR PARABOLIC SUSPENSION
26 t parabolic 3 leaves, 32 t semi-elliptical 11 leaves.
CAB WIDTH REDUCED IN THE FRONT
for greater manoeuvrability.
515 MM* GROUND CLEARANCE UNDER THE TANK
REDUCED TURNING RADIUS FOR EASIER MANOEUVRING
BEST APPROACH ANGLE ON THE MARKET
INTER-WHEEL AND INTER-AXLE DIFFERENTIAL LOCK AS STANDARD ON ALL MODELS

Profitability

STRONG ON BUSINESS

TECHNICAL CAPACITY UP TO 120T

OUTSTANDING TECHNICAL CAPACITIES AND BODY MOUNTING POSSIBILITIES

The K range is equipped with a chassis designed to handle heavy loads, allowing you to reduce the number of round trips. The many supplied provisions make body mounting easier and quicker.

BRACKETS FIXED TO THE SIDE MEMBERS
to make body mounting operations simpler.
POWER TAKE OFF
on the gearbox or engine for operating bodybuilder equipment when moving or stationary.
REAR OVERHANG
can be customised in 50 mm sections to avoid cutting the side members.

DRIVELINE

Renault Trucks has chosen engines delivering unprecedented performance levels and maximum reliability.

DXI 11 AND DXI 13 ENGINES
From 330 hp to 500 hp.
DOUBLE REDUCTION TANDEM DRIVE AXLE
More pulling power over challenging terrain.
OPTIDRIVER GEARBOX
Devoted to challenging applications in 4x4, 6x6 and up to 120 t.

OPTIDRIVER AUTOMATED TRANSMISSION WITH OFF-ROAD MODE AS STANDARD
THE OFF-ROAD MODE MODIFIES GEARBOX SHIFT STRATEGY, MAKING IT SUITABLE FOR DRIVING ON CONSTRUCTION SITES
THE POWER MODE ENABLES DRIVERS TO OVERCOME TEMPORARY DIFFICULTIES
